VCIs containing Joints created with UniVCI-0.15 cannot be properly loaded into UniVCI-0.16 or later. Make sure to use the latest UniVCI to export.

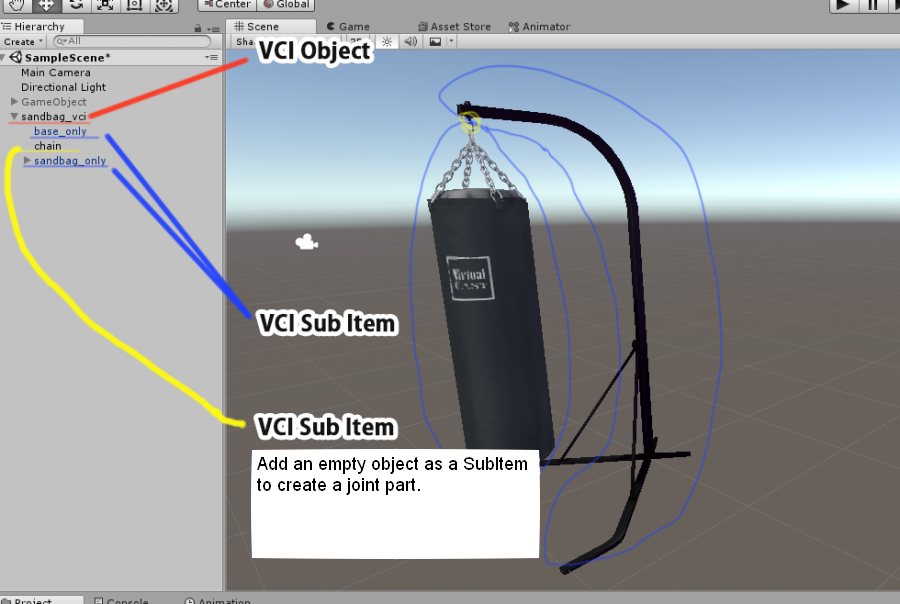

Create a punching bag using Joints

https://virtualcast.jp/products/aea6df01c5f5f12c32ab510944f8d0421f8a0ab9bb11f0ea9ae4279bb05c7219

For this example, we will be using Hinge Joints.

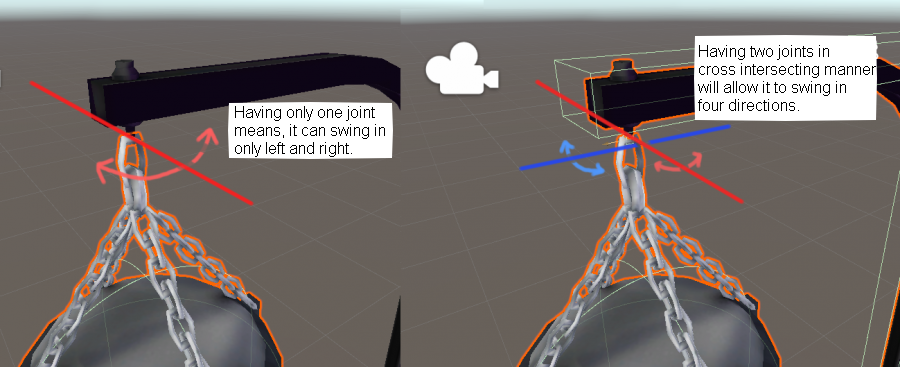

Having only one Joint will limit the rotation to only one axis.
Place two joints in a perpendicularly intersecting manner so that the bag will swing in all directions.

Each objects are configured as shown below:
GroupIDs for all objects shoud be set to 1.

We do not use script this time.

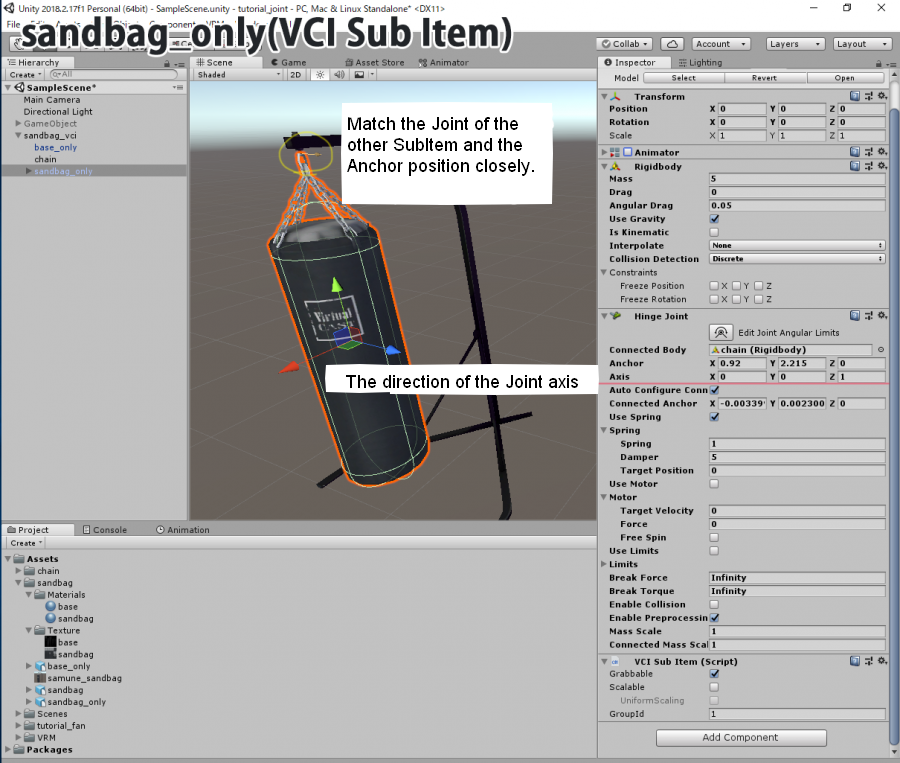

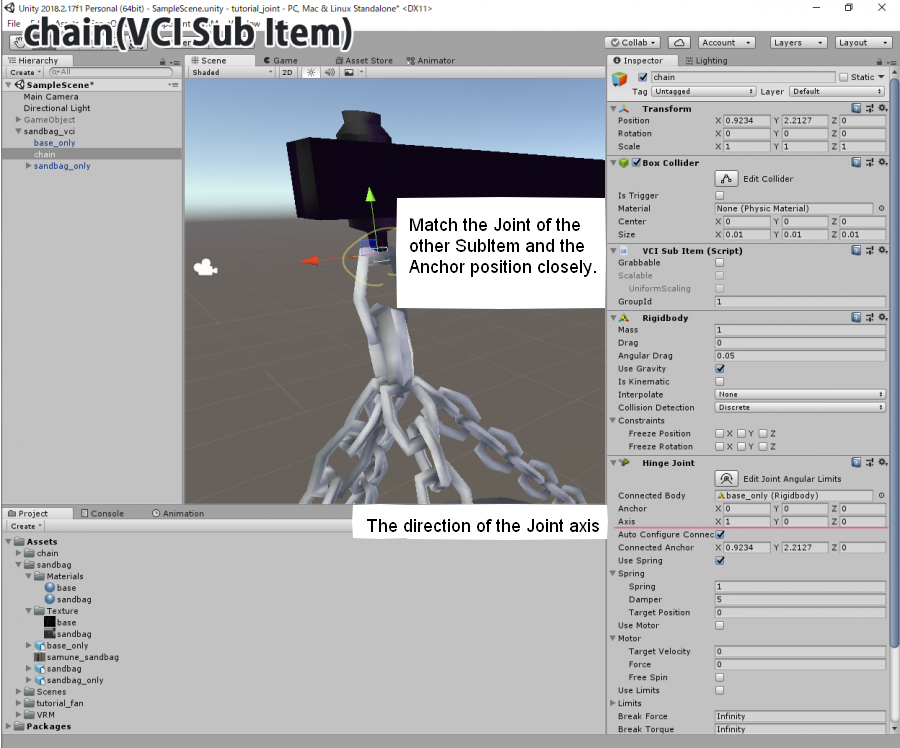

Components for each object are as shown below.
